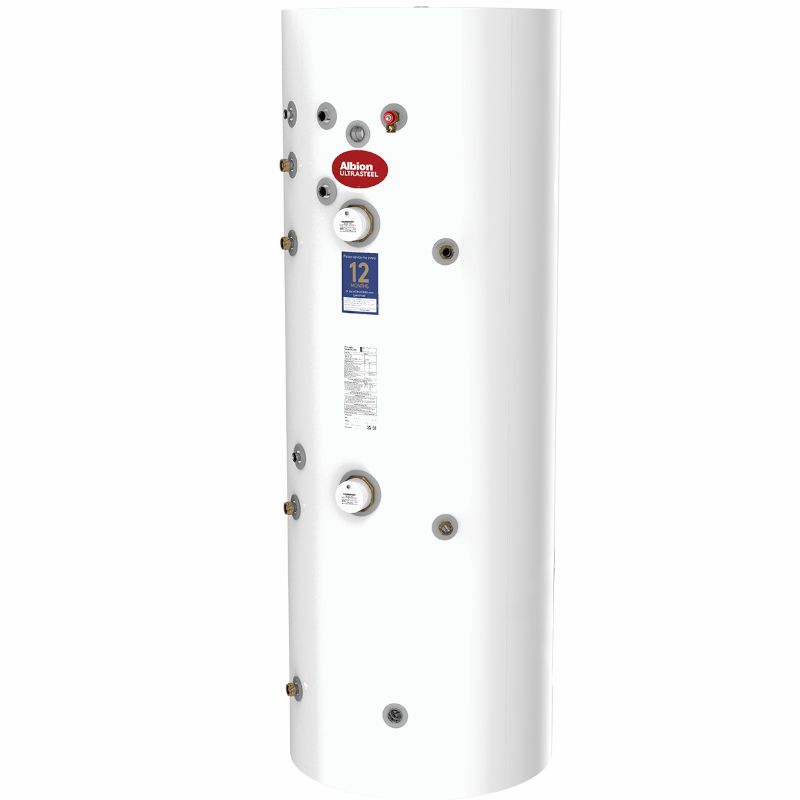

Kingspan Albion Ultrasteel 500 Litre Unvented Indirect SOLAR TWIN COIL Cylinder
Ultrasteel Solar Twin Coil indirect hot water cylinder uses both solar and conventional heat sources to give you hot water when you need it in an environmentally friendly way.
This stainless steel hot water cylinder connects to a solar thermal system as the primary heat source and a conventional boiler as a secondary heat source, giving you reliable supply of hot water whatever the weather.
The Ultrasteel is one of Kingspan Albion's most popular stainless steel unvented cylinders. Quick recovery coils mean homeowners have low reheat times for the fast availability of hot water.
High flow rates are perfect for multiple bathrooms and energy-efficient insulation keeps running costs low. An ideal solution for providing mains pressure hot water for domestic applications.
- Two high performance coil-in-coil heat exchangers - one for solar thermal input and the other for a traditional boiler
- 50mm CFC and HCFC-free foam lagging for low heat loss
- Dedicated secondary return connection
- Manufactured from ‘Duplex’ stainless steel for superior corrosion resistance
- 25-year anti-corrosion guarantee on inner container. See product brochure for more information.
- Inlet Control Set
- Temperature and Pressure Relief Valve
- Tundish
- Expansion Vessel
- 1 x 3kW Standard Immersion Heater
- Two port valve
- Dual thermostat
- Product Manual including Benchmark log
| Brand | Kingspan |
|---|---|
| Cylinder Model | Kingspan Ultrasteel |
| Product Type | Hot Water Cylinder |
| Cylinder Type | Indirect Twin Coil / Solar |
| Horizontal / Vertical | Vertical |
| Cylinder Volume (approx) | 500 litres |
| Manufacturer Product Number | AUSI500ERP |
| EAN | 5034499108270 |
| Shipping Weight (kg) | 116 |
| Full Weight (kg) | 600 |
| Product Height (Approx mm) | 1943 |
| Product Diameter (Approx mm) | 693 |
| Electric Element Rating (kW) | 1 x 3kW |
| Warranty ( Years ) | 25 year guarantee on basic vessel subject to T&C's* / 2 years on Components |
| Delivery (Approx Working Days) | 3 - 7 |
